MQ Serie von Torquemotoren als Bausatz

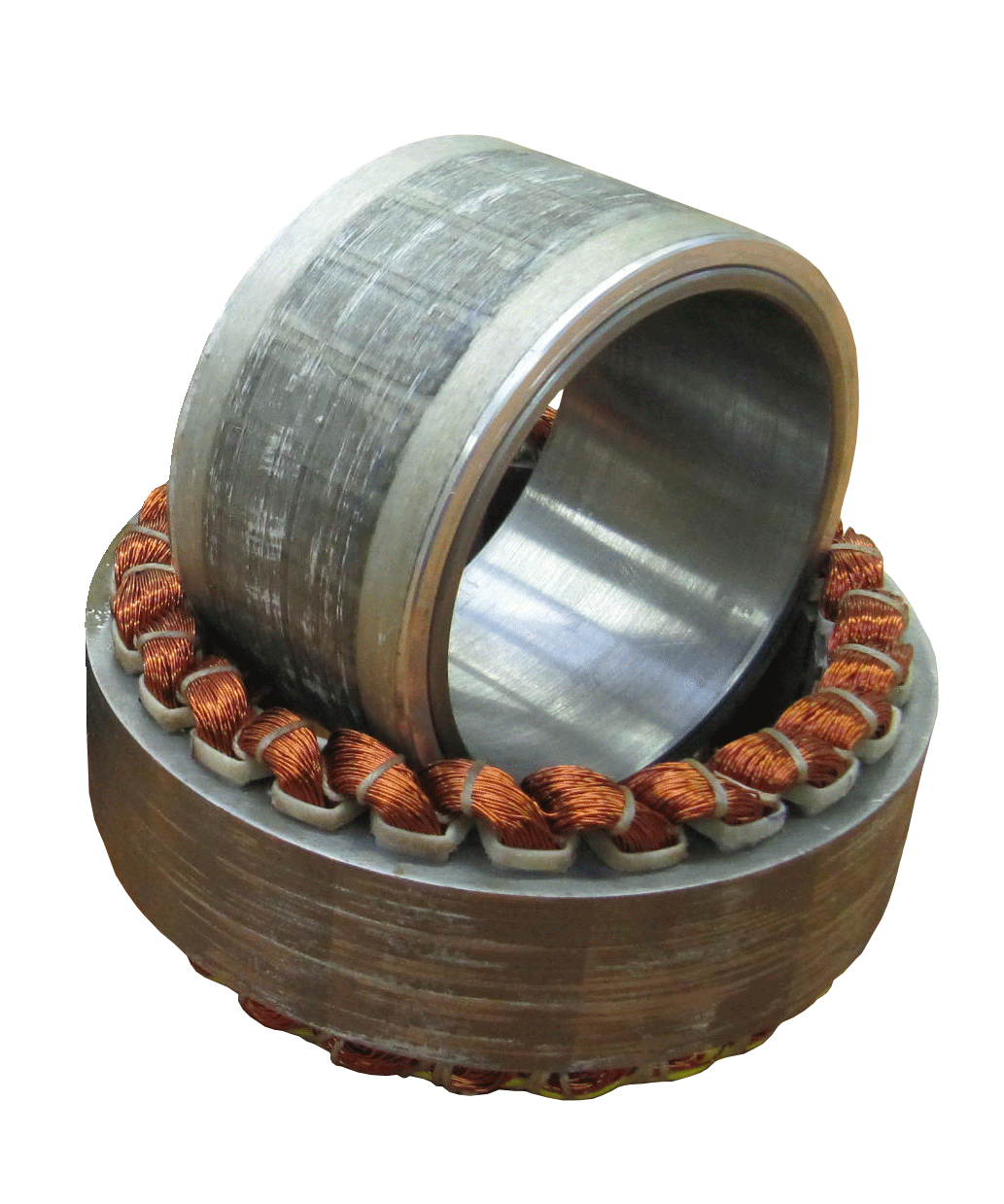

Our MQ-Series of torque motors in kit form, are available in 7 families with increasing outside diameters (OD):

  • MQ1: Stator-OD: 79mm   - rated torque from 2 to 8,Nm
  • MQ2: Stator-OD: 120mm - rated torque from 6 to 25Nm
  • MQ3: Stator-OD: 150mm - rated torque from 9 to42Nm
  • MQ4: Stator-OD: 180mm - rated torque from 14 to 67Nm
  • MQ5: Stator-OD: 210mm - rated torque from 25 to 96Nm
  • MQ6: Stator-OD: 290mm - rated torque from 60 to 258Nm
  • MQ7: Stator-OD: 360mm - rated torque from 105 to 469Nm

For an informative article about the benefits of using torque motors, please click here.

Do you have technical questions or need a quote?

Contact us today to talk to an experienced MACCON engineer!

Data table MQ motors

FamilyTypeRated stall torque
[Nm]
Stator-OD
[mm]
Stator length
incl.
end-turns
[mm]
Rotor-ID
[mm]
Number
of poles

MQ1


MQ1-0225-20-3202,2579524216
MQ1-0375-20-3203,7582
MQ1-0515-20-3205,15112
MQ1-0700-20-3207142
MQ1-0850-20-3208,5172

MQ2


MQ2-0650-15-5606,5120547222
MQ2-1200-15-5601284
MQ2-1700-15-56017114
MQ2-2000-15-56020144
MQ2-2550-15-56025,5174
MQ3MQ3-0950-10-5609,5150558622
MQ3-1800-10-5601885
MQ3-2600-10-56026115
MQ3-3450-10-56034,5145
MQ3-4200-10-56042175
MQ4MQ4-1450-10-56014,51806210622
MQ4-2900-10-56028,892
MQ4-4200-10-56042122
MQ4-5500-10-56055152
MQ4-6800-10-56067,7182
MQ5MQ5-2500-5-560252106814838
MQ5-4400-5-5604498
MQ5-6100-5-56061128
MQ5-7800-3-56078158
MQ5-9600-3-56096188
MQ6MQ6-0600-5-560602907321040
MQ6-1150-5-560115103
MQ6-1650-5-560165133
MQ6-2120-5-560212163
MQ6-2580-5-560258193
MQ7MQ7-1050-4-5601053608226552
MQ7-2000-4-560200112
MQ7-2900-4-560290142
MQ7-3800-2-560380172
MQ7-4690-2-560469202
