KinetiMax™ Series High Power Density Frameless Torque Motors

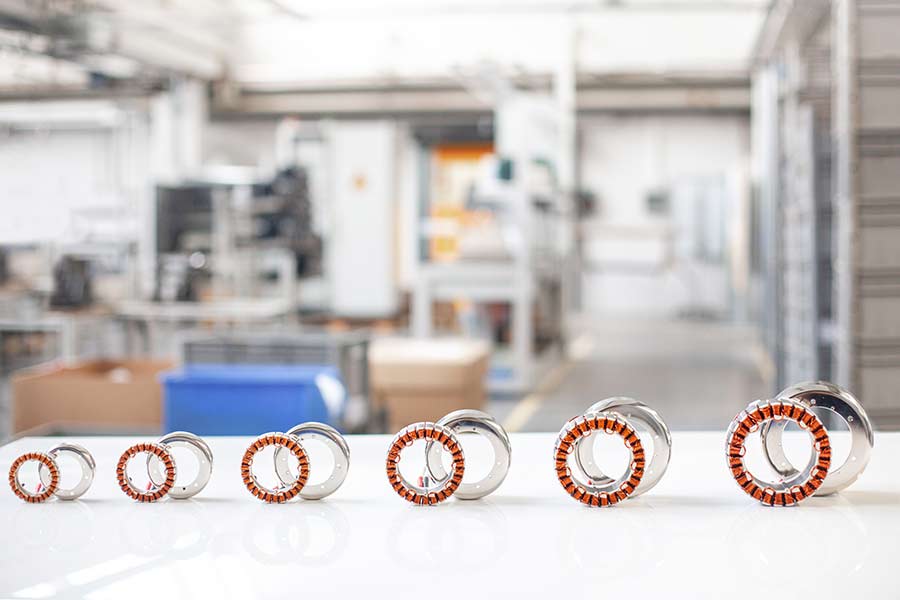

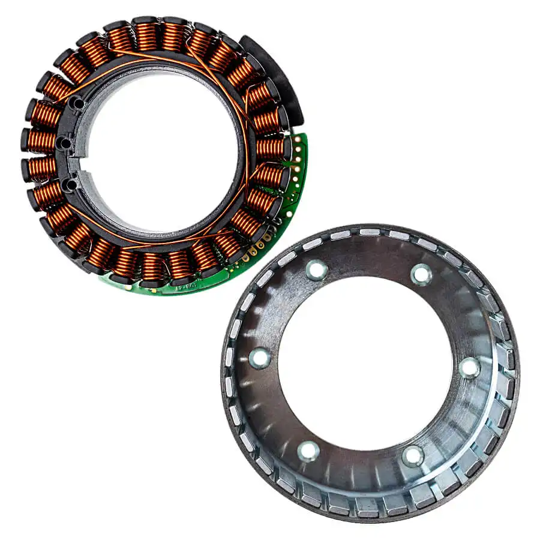

The KinetiMax High-Power-Density (HPD) series offers innovative frameless brushless external rotor torque motors. These motor kits, consisting of a stator and rotor, are distinguished by their high power density, flexibility, and efficiency. With six frame sizes (diameters ranging from 62 to 125 mm), three stack heights per size, and various winding options (18 V, 24 V, 36 V, 48 V), the optimal configuration can be tailored to any application.

Ideal for Space-Constrained Applications

Thanks to their compact design and large stator inner diameter, these motors allow for the seamless integration of oversized bearings or cable feedthroughs. This makes them the perfect solution for applications where space and weight are critical factors.

Key Advantages at a Glance:

• Torque: 0.16–6.3 Nm
• Power: Up to 1156 W
• Very high efficiency
• Minimal cogging effect for precise control

Typical Applications:

• Robotics (e.g., arms, joints)
• Automated Guided Vehicles (AGVs)/Driverless Transport Systems
• Handheld hydraulic tools
• Material handling systems
• Medical devices
• Rotary actuators
• Gimbals
• Other demanding applications
