Miniature Linear Actuators are for applications in laboratory automation, inspection or optical systems.

Design engineers of devices for laboratory automation, inspection or for optical systems must today more than ever accommodate sophisticated drive solutions in the smallest possible space.
These device manufacturers need solutions that are technically suitable for their application and at the same time are cost-effective.

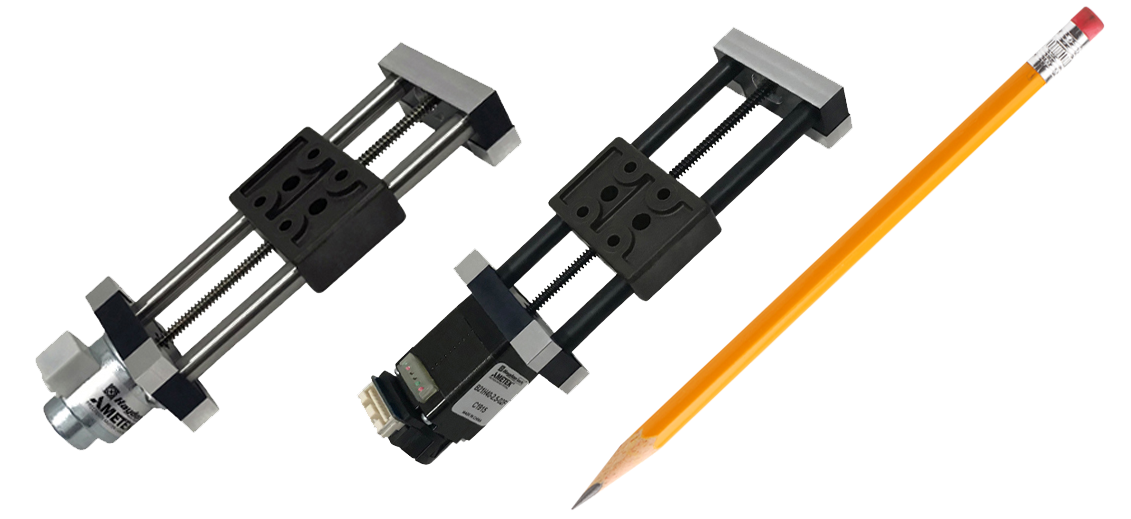

The MiniSlideTM series of miniature linear units from our manufacturing partner Haydon Kerk can solve these demanding tasks while reducing the design effort involved in developing guided linear assemblies from individual components. The miniature linear units can be configured for different strokes and forces, are easy to integrate and offer a compact low profile. They consist of a stepper motor, a running thread spindle, a spindle nut, a slide (integrated with the spindle nut) and linear guides.
The MiniSlide series offers tremendous design flexibility with two motor options: a 21mm size 8 hybrid linear actuator and a 20mm can-stack actuator. There are also nine different spindle pitches from 0.3mm to 8mm - with a resolution of up to 0.0015mm per step, axial forces of up to 45N and stroke lengths of up to 150mm. Finally, four different lubrication options, an encoder feedback option and English or metric hardware standards are available for mounting. The miniature linear units are ideal for use in laboratory automation applications such as sample handling, spectrometers and chromatographs, molecular analyzers, optical microscopes and other test equipment.

Please read on to learn more or contact us to discuss your requirements!

Do you have technical questions or need a quote?

Contact us today to talk to an experienced MACCON engineer!

Miniatur Linear Actuators with Hybrid Motor

The miniature linear actuator of the MiniSlideTM series with Size 8 Hybrid Motor combines a small design with high forces and is particularly suitable for use in small laboratory and automation equipment.

  • Size 8 Hybrid stepper motor
  • Reduces design effort for engineers
  • Compact size, stable platform
  • Easy to integrate
  • Optional Encoder

Specifications of the Miniatur Linear Aktuator with Size 8 Hybrid Motor

Hybrid Stepper Linear Actuator (Size 8: 21mm (0.8-in); Step Angle: 1,8°)Datasheet
WiringBipolarBipolarBipolar

Winding Voltage2,5 VDC 5 VDC7,5 VDC
Current (RMS)/phase0,49 A0,24 A0,16 A
Resistance/phase5,1 Ω 20,4 Ω45,9 Ω
Inductance/phase1,5 mH5,0 mH11,7 mH
Power Consumption2,45 W2,45 W2,45 W
Rotor Inertia1,4 gcm21,4 gcm21,4 gcm2

Insulation Class

Class B (Class F available)

Class B (Class F available)

Class B (Class F available)

Weight 43 g 43 g 43 g
Insulation Resistance20 MΩ20 MΩ20 MΩ


Contact us to discuss your requirements with one of our experienced engineers!

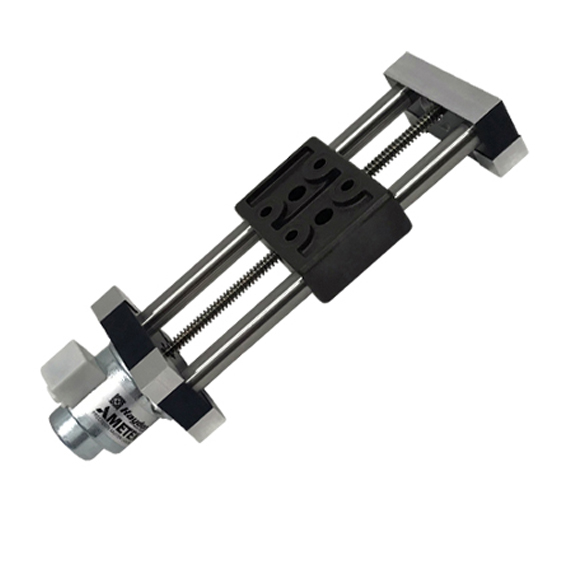

Miniatur linear actuator with Can-Stack Stepper Motor

The miniature linear unit of the MiniSlideTM series with a 20mm can-stack stepper motor combines a small design with high forces and is particularly suitable for use in small laboratory and automation equipment.   .

  •     20mm Can-Stack Motor
  •     Reduces design effort for engineers
  •     Compact size, stable platform
  •     Easy to integrate

Do you have technical questions or need a quote?

Contact us today to talk to an experienced MACCON engineer!

Specifications of the Miniatur Linear Actuator with Can-Stack Motor

Can-Stack Stepper Motor ( Ø 20 mm (0,79-in); 19000 Series Motor)Datasheet
Step Angle7,5°7,5°









WiringBipolarBipolar
Winding Voltage5 VDC12 VDC
Current (RMS)/phase350 mA160 mA
Resistance/phase14,0 Ω74,5 Ω
Inductance/phase6,24 mH31,2 mH
Power Consumption3,38 W3,38 W
Insulation ClassClass BClass B
Weight35 g35 g
Insulation Resistance20 MΩ20 MΩ
