We offer four different families of brushed DC motors, as shown in the following table:

FamilyRated TorquePowerMax. Speed
 NmWU/min
C4-16X0,2 - 0,455 - 1108.000
M4-200X0,4 - 0,690 - 3006.000
M4-295X2 - 8750 - 1.5005.000
M4-420X10 - 301.500 - 2.6003.200

C4-16X range of brushed DC-Motors

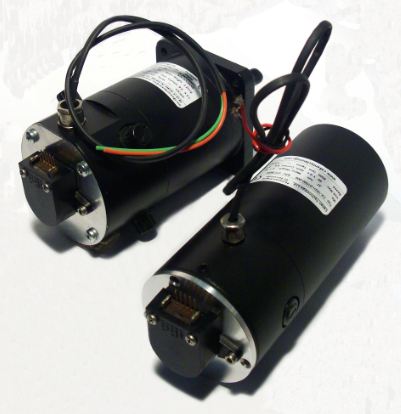

The C4-16X is a new range of compact, rare earth DC servomotors specifically designed for applications where low cost is important while maintaining ruggedness and performance.

The most important features are as follows:

  • Rated torque from 0.2 to 0.4Nm
  • Maximum speed 8,000 rpm
  • Compact size
  • Rare earth magnets
  • 2 poles
  • Round flange
  • Cable gland with flying leads
  • IP44
  • Smooth shaft

Additional options:


  • Windings for 12, 24, 28 and 75Vdc
  • Planetary gearbox
  • Shaft diameter 6mm or 8mm
  • multiple Feedback options


For further information, please download the datasheet, drawing or part-numbering scheme (PDF downloads on the right-hand side).

Do you have technical questions or need a quote?

Contact us today to talk to an experienced MACCON engineer!

M4-200X range of brushed DC-Motors

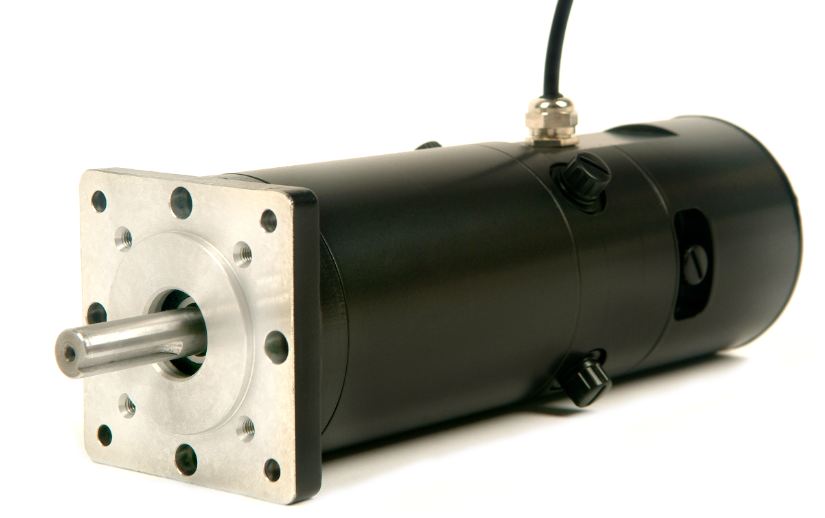

The M4-200X range of compact servo motors has been designed specifically for robotics, machine tool and automatic handling equipment as well as for mobile and general servo-drive applications where accuracy, reliability and high power/ weight ratio are vitally important.

The most important features are as follows:

  • 0.4 to 1.6Nm
  • 90 - 300 Watt
  • 6000 rpm Max Speed
  • Compact size
  • High Energy Rare Earth Magnets
  • Encoder Mounting Spigot Provided
  • Available with or without Tacho
  • 4-Pole Motor

Standard Features:

  • Square Flange (IMB5)
  • P.G. Gland
  • IP44 Sealing
  • Keyway
  • Tacho

Options:

  • Brake
  • Connectors
  • Special Winding
  • No Keyway
  • Special Shafts
  • Thermostat
  • Oil Seal
  • Special Sealing
  • Rear Shaft Extension
  • Round Flange (IMB14)

For further information, please download the datasheet, drawing or part-numbering scheme (PDF downloads on the right-hand side).

Replacement for Parvex* (Parker) RX3 DC motors

Parker's RX3 family will be discontinued from November 2020. Our motor M4-2006 can be used as a replacement for the following Parvex types:

  • RX320E
  • RX330C
  • RX330Z

For further information, please download the data sheet "RX3 Brochure" above the picture (right) or contact us.

*: RX3 is a tradename of Parker (Parvex), brush DC servomotors

Do you have technical questions or need a quote?

Contact us today to talk to an experienced MACCON engineer!

M4-295X range of brushed DC-Motors

Utilizing high energy rare earth magnet material, the M4-295X series DC servo-motor-tach units provide precise motion control in machine tools, robotics, automatic material handling, wiredrawing, paper, plastic-film and foil processing, tension controls and packaging machinery. Peak torque of up to 40 Nm gives ample power for fast, accurate positioning. Coupled with low motor inertia, theoretical acceleration of up to 25,000 rad/s2 results.

The most important features are as follows:

  • 750 - 1500W
  • 2 to 8Nm
  • 5000 rpm Max Speed
  • Compact size
  • High Energy Rare Earth Magnets
  • Encoder Mounting Spigot Provided
  • 4-Pole Motor

Standard Features:

  • Round Flange (IMB14)
  • P.G. Gland
  • IP44 Sealing
  • Keyway
  • Tacho

Options:

  • Brake
  • Connectors
  • Special Winding
  • No Keyway
  • Special Shafts
  • Thermostat
  • Oil Seal
  • Special Sealing
  • Square Flange (IMB5)

For further information, please download the datasheet, drawing or part-numbering scheme (PDF downloads on the right-hand side).

Do you have technical questions or need a quote?

Contact us today to talk to an experienced MACCON engineer!

M4-420X series of brushed DC motors

Utilizing high energy rare earth magnet material, the M4-420X series DC servo-motor-tach units provide precise motion control in machine tools, robotics, automatic material handling, wiredrawing, paper, plastic-film and foil processing, tension controls and packaging machinery, etc. Peak torque of up to 161Nm gives ample power for fast, accurate positioning. Coupled with low motor inertia, theoretical acceleration of up to 6500 rad/sec2 results.

With a speed range capability in excess of 20.000 : 1, one motor can provide rapid traverse and feed rates for each machine axis, eliminating the complexity and compliance of multiple motors, clutches, and gear trains. Speeds as low as 6 revs. per hour may be achieved in a position loop without cogging. The unique permanent-magnet structure eliminates thermal runaway and commutation problems commonly encountered in conventional ceramic-magnet motors. Provision is made for mounting resolver, encoder or other position feedback devices by means of a spigot at the non-drive end with shaft extension. A 24V d.c. failsafe brake can optionally be provided. Motor power and tachogenerator leads are provided via junction boxes but alternative connection by flying lead (PG Glands) or connectors is possible.

The Electrical Specification above is a sample of our standard windings. We have many special windings designed to cover most speed/torque applications. If the winding below do not suit your application please contact us and we will design a special winding for you.

Specification:

  • 10 to 30Nm
  • 1.5 - 2.6 kW
  • 3200 rpm Max Speed
  • Compact Size
  • High Energy Rare Earth Magnets
  • 6-Pole Motor

Standard features:

  • Round Flange (IMB14)
  • Junction Box
  • IP44 Sealing
  • Keyway
  • Rear Shaft Extension
  • Tacho
  • Thermostat

Options:

  • Brake
  • Connectors
  • Square Flange (IMB5)
  • Special Winding
  • No Keyway
  • Special Shafts
  • Oil Seal
  • Special Sealing
