Stepnet Plus (CANopen, EtherCAT)

Stepnet Plus is the high end version of the Stepnet controllers:

  • enhanced current resolution
  • more inputs/outputs
  • new fieldbus systems: CANopen, EtherCAT
  • 2-axis versions (as panel or module)
  • 4-axis version (module, CANopen only)

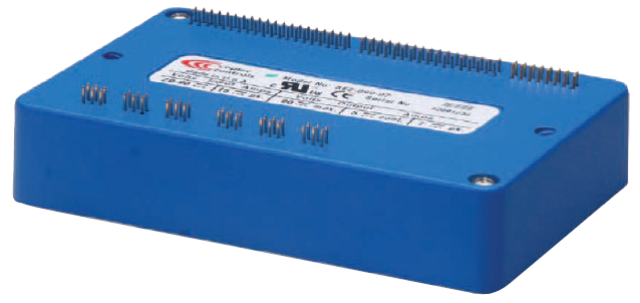

Stepnet Plus Module: Single or dual-axis stepper drive with CANopen or EtherCAT as a pluggable module
Stepnet Plus Module: Single or dual-axis stepper drive with CANopen or EtherCAT as a pluggable module

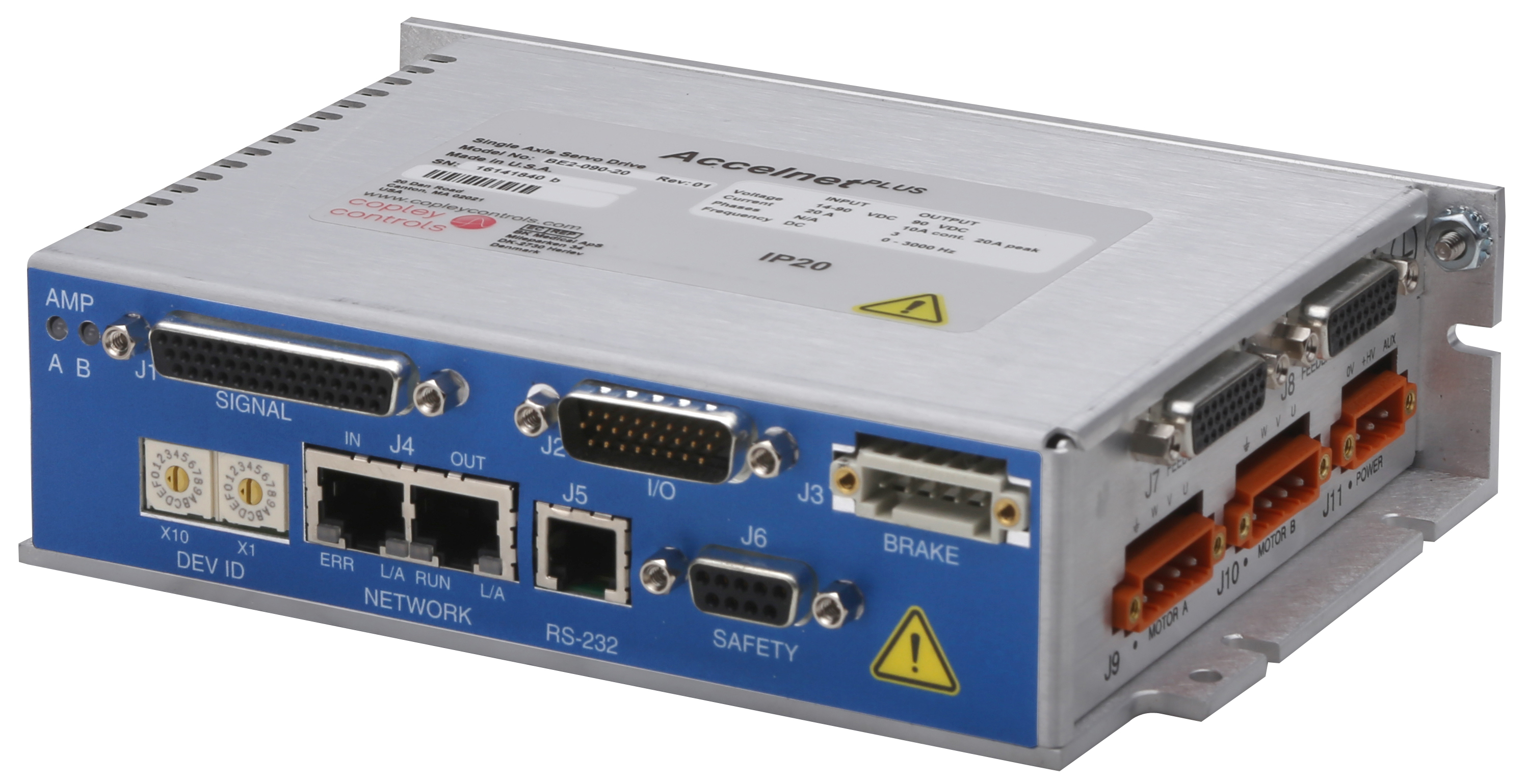

Stepnet Plus Panel: Single or dual-axis stepper drive with CANopen or EtherCAT
Stepnet Plus Panel: Single or dual-axis stepper drive with CANopen or EtherCAT

Do you have technical questions or need a quote?

Contact us today to talk to an experienced MACCON engineer!

Open Contact-Form

Downloads

Stepnet Plus EtherCAT Panel Stepnet Plus EtherCAT Panel 2-Axis Stepnet Plus EtherCAT Module Stepnet Plus EtherCAT Module 2-Axis Stepnet Plus CANopen Panel 2-Axis Stepnet Plus CANopen Module Stepnet Plus CANopen Module 2-Axis Stepnet Plus CANopen Module 4-Axis

Data table Stepnet Plus

ModelVoltage
(Vdc)		Cont. Current
(Arms / Adc)		Peal Current
(Arms / Adc)		Mounting FormDimensions
HxWxD
(mm)		Digital
In/Out		Feedback
TEL/TPL-090-0720-903,5 / 55 / 7Gehäuse
(Panel)
einachsig		125x81x4012 / 4inkrementell:
TTL-Encoder (RS422)
TEL/TPL-090-1020-907,1 / 107,1 / 10
TE2/TP2-090-0720-903,5 / 55 / 7Gehäuse
(Panel)
zweiachsig		167x116x4124 / 7
TE2/TP2-090-1020-907,1 / 107,1 / 10
SEM/SPM-090-0720-903,5 / 55 / 7Modul (Lötpins)
einachsig		77x21x5917 / 6
SEP/SPM-090-1020-907,1 / 107,1 / 10
SE2/SP2-090-0720-903,5 / 55 / 7Modul (Lötpins)
zweiachsig		114x21x7326 / 7
SE2/SP2-090-1020-907,1 / 107,1 / 10
SP4-055-0314-552,1 / 32,1 / 3Modul (Lötpins)
vierachsig		102x77x2124 / 8
