RE Resolvers

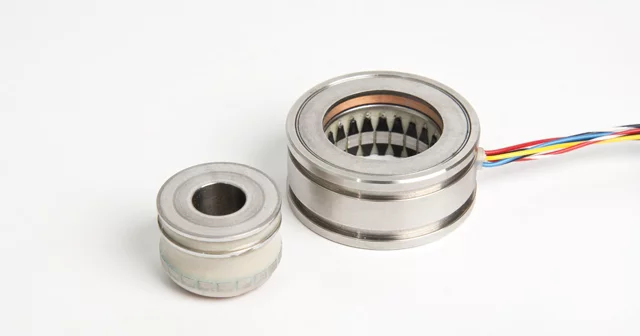

Resolver size: RE- 15


• Dimensions:

  • hollow shaft Ø: 12mm max.
  • OD Ø: 36.8mm
  • length: 16mm

• Main Characteristics:

  • operational temperature: -55 ... +155 ºC
  • speed: 20,000rpm max.
  • absolute accuracy: ± 4‘/± 6‘/±10‘
  • accuracy ripple: 1‘ max.
  • rotor and stator completely impregnated
  • 1, 2, 3, 4 pole pairs

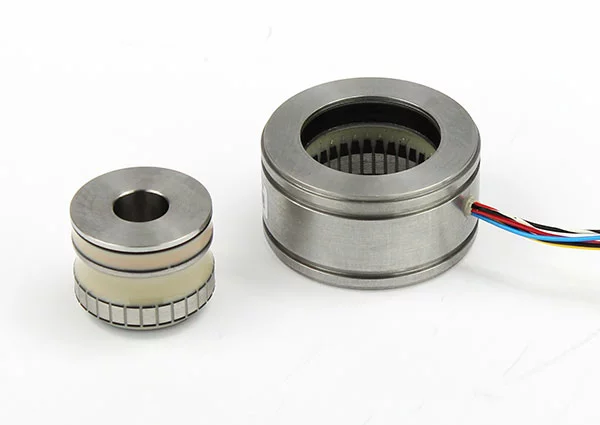

Resolver size: RE- 21


• Dimensions:

  • hollow shaft Ø: 17mm max.
  • OD Ø: 52.4mm
  • length: 26mm

• Main Characteristics:

  • operational temperature: -55 ºC...+155ºC
  • speed: 20,000 1/min max.
  • absolute accuracy: ± 4‘/± 6‘/±10‘
  • accuracy ripple: 1‘ max.
  • rotor and stator completely impregnated
  • 1, 2, 3, 4 pole pairs
